Draft 1

This is my Draft 1 model on sketchup. It is based on zaha hadid Irish PM resident. the butterfly wing like is the bridge which is going to be wrapped by the hills or mountains.

Overall view of the school

Mainly the space for class and any other room at the school

Canteen and a small closed park for students to relax

view from the bridge

Dean's Office

Week 1 Landscape

ORO ORO OMBO, SEMERU MOUNTAIN, JAVA

ORO ORO OMBO IS THE VALLEY OF SEMERU MOUNTAIN WHICH IS THE TALLEST MOUNTAIN IN JAVA, INDONESIA WITH 3,679M HIGH. IT IS CONSIDER TO BE ONE OF THE MOST BEAUTIFUL VALLEY IN INDONESIA ESPECIALLY IN RAINY SEASON.

THOSE WHO WANT TO CLIMB UP SEMERU MOUNTAIN WILL PAS THROUGH THIS VALLEY

THIS IS THE REASON WHY IT IS CALLED ONE OF THE MOST BEAUTIFUL VALLEY IN INDONESIA. DURING RAINY SEASON, LAVENDER WILL GROW THROUGHOUT THE FIELD WHICH CREATE VERY BEAUTIFUL PURPLE FIELD

Mashup

In minimalist architecture the work is stripped down to its most fundamental features. Leaving out certain details is as important as what appears. And rather than focusing on superfluous detail, fine minimalist homes celebrate the ever-changing light and shadows. Less is more is a somewhat trite cliché, but under the rather shop-worn exterior is an important concept. Sometimes taking things away allows the real strength of the core concept to shine through. Sometimes all the extra “chrome” isn’t adding at all: it’s just obscuring the really good parts. Always, the trick is to know when and what to prune.

References:

Minimalist Design

http://new-design-times.com/article/articleC47.php?ID=47

Less is more

http://quirkworthy.com/2011/11/02/design-theory-less-is-more/

Striking the balance when less

http://m.smh.com.au/domain/real-estate-news/striking-the-balance-when-less-20140315-34tin.html

EXP 2 - FINAL SUBMISSION

FINAL SUBMISSION

ELECTROLIQUID AGGREGATION CONCEPT

CONTRAST OF STRUCTURAL MASS AND LARGE VOID SPANS OF FORMS TO CREATE LIGHT AND SHADOW

18 AXONOMETRIC

SKETCHUP MODEL

<<ACCESS FILE HERE>>

36 TEXTURES

CHOSEN TEXTURES

 LIGHT - THIS LEAF LIKE SHAPED IS INSPIRED BY THE CEILING IN RICARDO PORRO'S SECONDARY SCHOOL AT CERGY LE-HAUT. IT SHOWS THE SIMPLICITY OF THE BUILDING.

MEDIUM - THIS JAGGED STYLE PATTERN SHOWS THE SHARPNESS OF THE BUILDING. IT IS USED FOR THE INTERLOCKING SPACE IN THE BUILDING.

DARK - THE FUSION OF WHITE AND BLACK COLOUR SHOWS THE COMBINATION CONTRAST OF COLOUR. THIS PATTERN IS USED IN THE MEETING SPACE, WHICH SHOWS THE EXCHANGE AND COMMUNICATION OF EVERY INDIVIDUALS IN THE MONUMENT.

LUMION FILE

<<ACCESS FILE HERE>>

LUMION IMAGES

THE MONUMENT IS LOCATED IN THE MIDDLE OF THE CLIFF. THE MONUMENT CONNECTS EACH SIDE OF THE CLIFF. VISITORS SHOULD TAKE THE BIG TUNNEL TO GET INTO THE MEETING POINT AND ALSO THE OTHER PART OF THE MONUMENT.

VISITORS CAN TAKE THIS STAIR TO GET INTO THE PLACE TO SEE SUNSET. WALL ARE PLACE BESIDE THE STAIR SO IT IS NOT VISIBLE BY THE VISITOR FROM MEETING POINT. THEY SHOULD IDENTIFY THEMSELVES WHICH MAKE IT MORE INTERESTING.

VISITORS CAN ALSO GET SUNSET VIEW FROM THE TUNNEL.

THERE IS ALSO ANOTHER STAIRS TO GET TO THE MEETING POINT FROM ANOTHER BLOCK OF THE MONUMENT.

NIGHT VIEW

Attempt 1

36 Textures

3 Electroliquid Aggregation

Concept 1 :

Modularity & Repitition

+

Organised forms arranged in a labyrinthian way

=

 Modularity & repetition in a labyrinthian way

Concept 2:

Displacement of different forms to create light and shadow

+

Contrast of structural mass and Large spans

=

Contrast of structural mass and large void spans of forms to create light& shadow

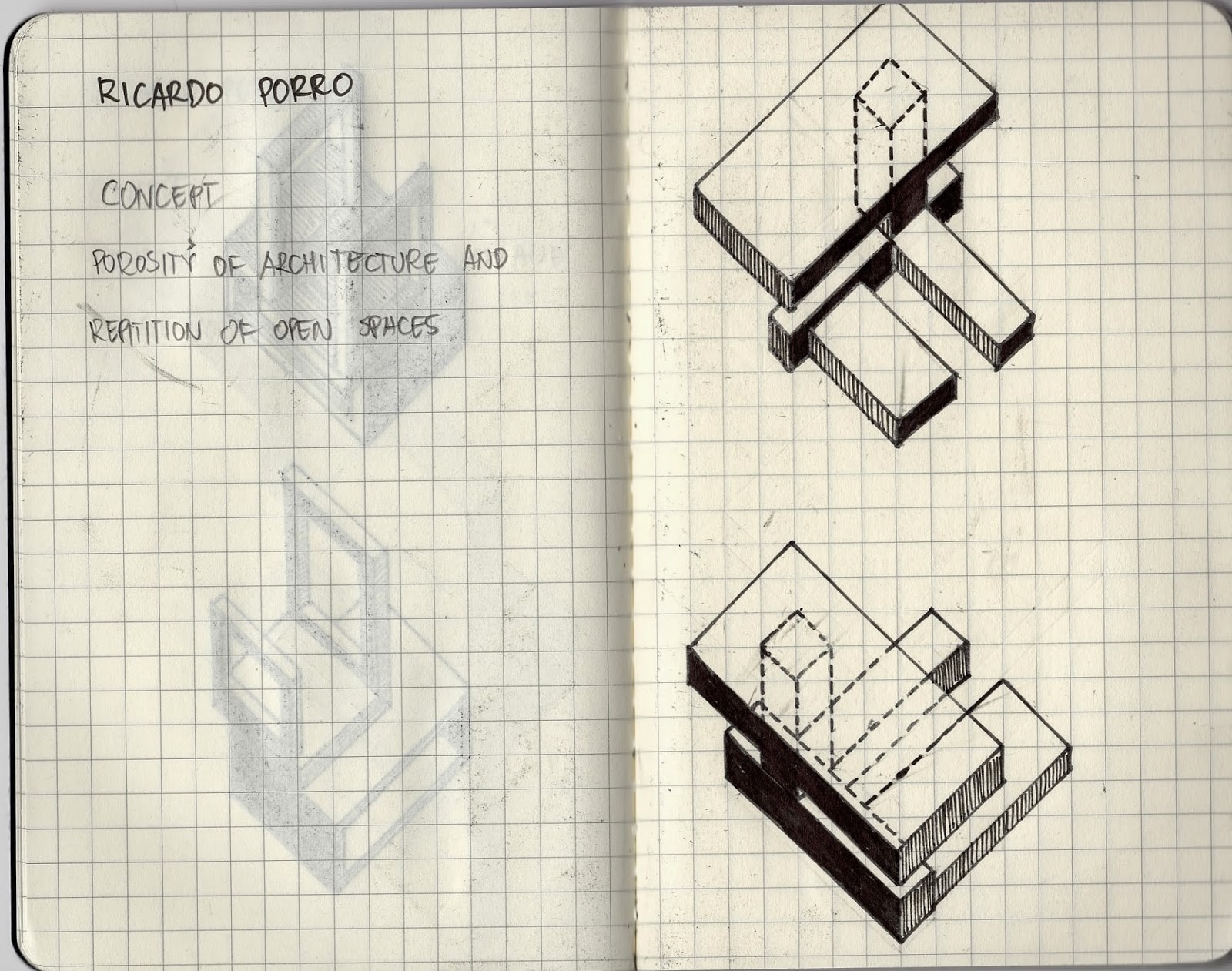

Concept 3

Horizontal expansion vs vertical

+

Porosity of architecture and repetition of open spaces

=

Horizontal expansion vs vertical and repetition of open spaces
